Electrically-operated valve PVSSV-A-ISO250-P
pneumaticisolationstainless steel

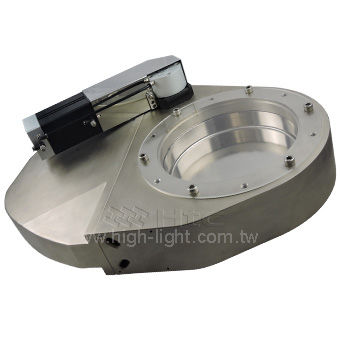

Electrically-operated valve - PVSSV-A-ISO250-P - Highlight Technology Corp. - pneumatic / isolation / stainless steel
Electrically-operated valve - PVSSV-A-ISO250-P - Highlight Technology Corp. - pneumatic / isolation / stainless steel
Electrically-operated valve - PVSSV-A-ISO250-P - Highlight Technology Corp. - pneumatic / isolation / stainless steel - image - 2
Add to favorites
Compare this product


Characteristics

Operation
electrically-operated, pneumatic
Function
isolation
Body
stainless steel, nickel-plated
Applications
for industrial applications, for vacuum
DN

655 mm
(25.787 in)

Pressure

1.2 bar
(17.4 psi)

Temperature

Max.: 120 °C
(248 °F)

Min.: 50 °C
(122 °F)

Description

HTC vacuum pendulum valve is to install a large throttle valve between the process vacuum chamber and the turbine molecular pump inlet. The current pendulum valve design are constructed of Nickel plating or hard anodized stainless steel for corrosion resistant and less dust. It's vailable with ISO 250 flanges in sizes 10" and can be operated in pneumatic or APC mode. This vacuum valve is usually designed as a gate valve or a pendulum valve, applications include OLED, FPD, and PV industries manufacturing systems.
