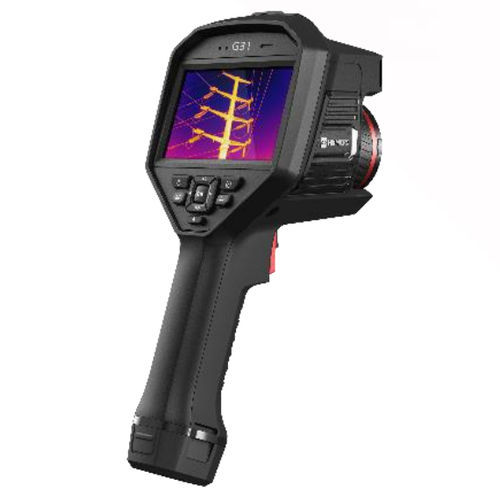

Furnace camera Gx1 series
industrialdigitalthermal

Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal
Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal
Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal - image - 2
Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal - image - 3
Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal - image - 4
Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal - image - 5
Furnace camera - Gx1 series - Hikmicro - industrial / digital / thermal - image - 6
Add to favorites
Compare this product


Characteristics

Applications
industrial, for furnaces
Technology
digital
Function
inspection, thermal
Spectrum
IR
Interface
USB, WiFi
Resolution level
640 x 480, ultra-high resolution
Resolution
8 Mpx
Other characteristics
with LCD screen, high-sensitivity, zoom, IP54, wide angle lens, with touch screen, autofocus, with alarm, handheld, high-temperature, with built-in SD card slot

Description

A highly sensitive VOx detector with 640 x 480 (307,200 pixels)IR resolution, provides a distinct thermal vision of the target. 5 Quick Focus Modes Support for 5 focus modes (Laser Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements. 3 Add-on Lenses 3 Add-on Lens 0.5X, 2X, and 3.3X are available for choice. Different teleconverter gives different Field Of View, which gives more choices when facing different scenarios. Up to 2000°C Temperature Range With a measurement range of up to 2000°C (3992°F), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures. (*G41H/G61H only) Embedded Laser Distance Meter An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report. 5 Image Modes Thermal, Fusion, PIP, Blending and Optical modes to suit your preferred. Complete Image Annotations In addition to supporting voice, text and QR Code Scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity. Interchangeable Battery System Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
