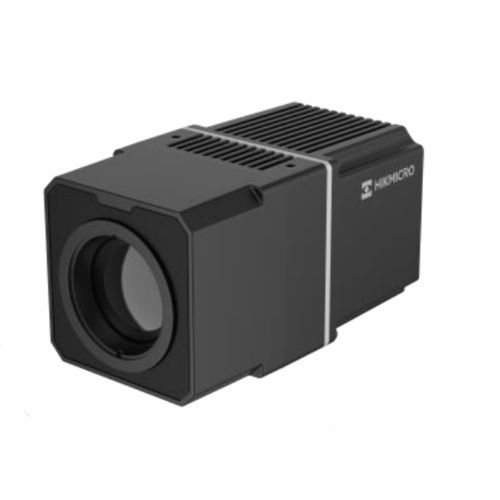

Industrial camera HM-TD2A seriesthermographicthermalfocal plane array
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Function
- thermal, thermographic
- Sensor
- focal plane array
- Interface
- Ethernet
- Resolution level
- 384 x 288
- Other characteristics
- high-sensitivity, networked, digital zoom, box, IP40, autofocus, with alarm, uncooled
Description
Outstanding image quality with up to 640x512 pixels
The Thermographic Network Box Camera with small size, low power consumption and simple integration realizes real-time high-accuracy object temperature measurement.
Object temperature range: -20°C to 150°C (-4°F to 302°F), 0 °C to 650 °C (32°F to 1202 °F); Max (±2 °C, ±2%)
• Temperature measurement at user-defined points, lines, and areas
• Thermal image frame rate: 50 fps
• A highlighted cross at the max. temperature in the thermal image
• Color alarm (isotherm) available for Above, Between, and Below object temperatures
• Support mirroring, digital zoom(2x,4x,8x)
