Oil heated hose HX6B
for paintwaterATEX

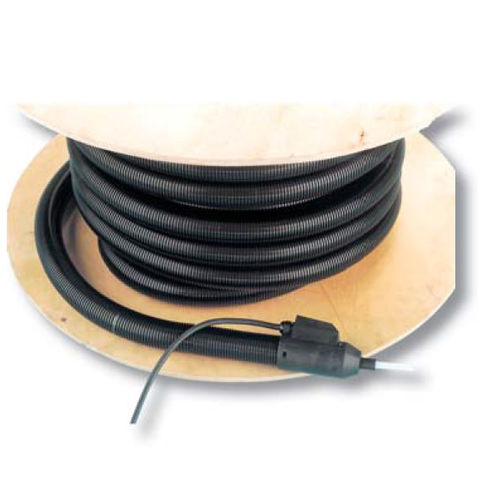

Oil heated hose - HX6B  - Hillesheim GmbH - for paint / water / ATEX
Oil heated hose - HX6B  - Hillesheim GmbH - for paint / water / ATEX
Oil heated hose - HX6B  - Hillesheim GmbH - for paint / water / ATEX - image - 2
Add to favorites
Compare this product


Characteristics

Fluid
for oil, water, for paint
Other characteristics
ATEX
Operating temperature

Max.: 200 °C
(392 °F)

Min.: 35 °C
(95 °F)

Description

The HX6B series industrial heating hoses is designed for use in Ex areas. The heating hoses are above all characterised by their compact construction with connection configuration. The HX series heating hoses are tested to ATEX standards and with an EC type examination certificate they are certified for the entire heating hose. The specially structured HX6B series heating hoses can be used in temperature classes T1 ... T6 depending on the temperature control and are suitable for use in zones 1/2 (gas) and zones 21/22 (dust). Their operation in zones 0 and 20 is not permissible. The HX6B series industrial heating hoses can be deployed, even without temperature regulation, as a consequence of their self-limiting characteristic. The maximum final temperature must be monitored with controllers dependent upon the application. Applications: Heat-loss free transport of: oil, grease, resin, tar, paint, water, carbon dioxide, plastic, moulding compounds etc. in Ex areas.
