Explosion-proof connection head HBR-IAL3Ex-HQSS

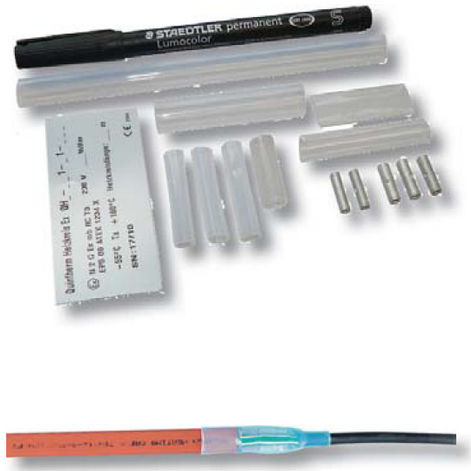

The system includes a very flexible and space-saving connection technology for use in explosion hazard areas. The use of a special temperature stable FEP connecting cable offers various applications, also at very high temperatures. The set includes the connection and the termination Compact dimensions Continuous temperature stability up to 180°C Flexible in use Used for ILH and ILS heating conductors Configuration ex works - Type HBR-IAL3Ex-HQSS-E Self-configuration set - Type HBR-IAL3Ex-HQSS Temperature class - T3 For following heating tapes - HBR-ILH, HBR-ILS Length of connection piece - 140 mm Length of termination - 55 mm Marking - (Ex) II 2G Ex mb IIC T3 Approval - EPS 09 ATEX 1234x / CE 2004 Connecting cable Ex (option) by the metre 200°C - HBR-ALF-25 - FEP – connecting cable 3x2.5 mm²
