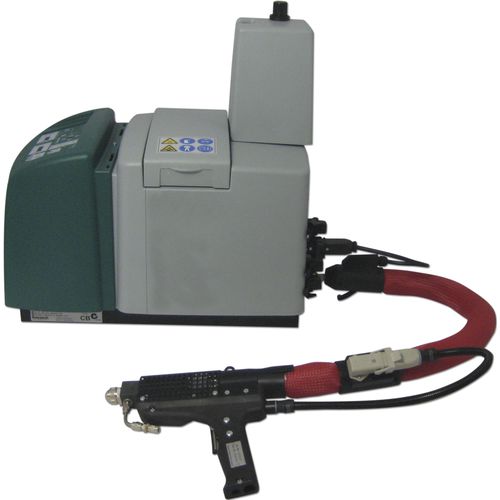

Adhesive heated hose H 200

PTFEstainless steelpolyamide

Heat-loss free transport of: adhesives, hot-melt etc. Deployable pressure hose made of PTFE of DN 4 – 50 mm; pressure load depending on the nominal diameter up to 600 bar. Rated voltage - 230 V AC/DC (other voltages up to 500 V) Rated power - Watt/metre depending on selection Pressure hose type - see Pressure hoses Connection fitting - steel / stainless steel, see fittings Heating - heating conductor, structure according to DIN, moisture-proof with protective braiding Thermal insulation - heat stabilized, closed-pore Outer protective braiding - polyamide, black, options possible Hose end caps - PA hard cap or elastomer cap Temperature sensor - Fe-CuNi type J, NiCr-Ni type K, PT100 Ni 120 Connecting cable - dependent on the installation Plug connection - special plug dependent on the installation Control lines - number according to customer requirements Production lengths - from 0.3 to 50 m depending on DIN Protection type - up to IP54 (EN 60529), protection class I Tolerance - ±10°C
