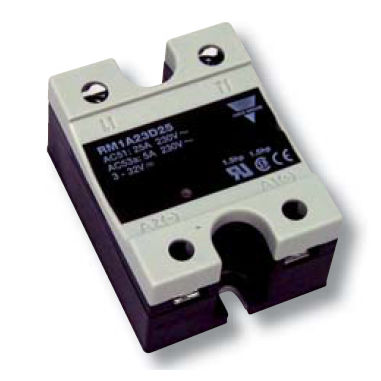

24VAC solid state relay SSR 25 A

110VAC220VACDIN rail

This electronic switching relay can be installed anywhere, saving space in the housing. Installation is a metal housing is recommended for high load currents to ensure sufficient cooling for dissipated heat. Load current - 25 A AC 1 (max. load) Protection type - IP20 (EN 60529), protection class I Connection terminals - 2.5 mm² Dissipated heat - sufficient cooling must be ensured for switching power above 5 A (heat sink) Housing dimensions - 57 x 45 x 30 mm (H x W x D) Note - Solid state relay pass residual current even in the open switching state. Therefore connect an upstream main switch or contactor. Type - Control voltage
