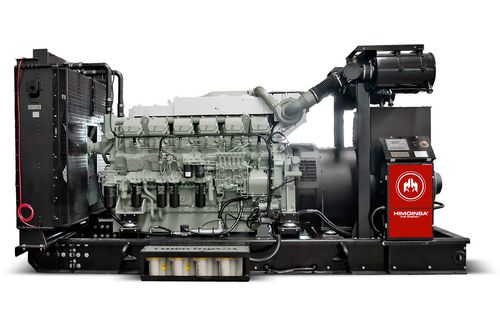

Diesel generator set HTW-1260 T5

three-phase60 Hzdirect fuel injection

Himoinsa's HTW-1260 T5 is an 11 kilogram Diesel 4 strokes-cycle engine type manufactured by MITSUBISHI. It has cylinders arrangement of 12V, 170 x 180 mm bore and stroke, 49.03 L of displacement, a total oil capacity of 335 L and it can hold up to 400 L of fuel. This engine has a standard air, fuel and oil filter, an oil temperature sensor, low coolant level sensor and exhaust gases compensator. Its generator has 4 poles with frame mountings of S-0 21" and H class insulation. The engine's maximum exhaust temperature is 520 degrees Celsius with a maximum allowed back pressure of 600 mm H2o.
