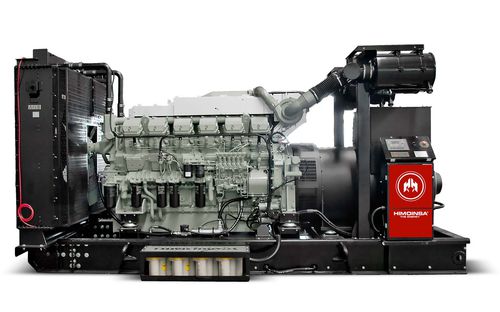

Diesel generator set HTW-1390 T5
three-phase50 Hzdirect fuel injection

Diesel generator set - HTW-1390 T5 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Diesel generator set - HTW-1390 T5 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Frequency
50 Hz
Fuel System
direct fuel injection
Applications
industrial
Power in kVA

Max.: 1,500 kVA
(2,039.43 hp)

Min.: 1,382 kVA
(1,879 hp)

Rotational speed

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The Mitsuibish engine of the S12R PTA2 model has a rated output of 1,165kW PRP, with 1,285kW standby. The engine is diesel, has a four-stroke cycle with direct injection, turbocharged and aftercooled aspiration and 12V cylinders. Bore and stroke is 170 x 180mm, with the displacement of 49,03L. The compression ratio is 13,5:1 with consumption ranging from 87,51l/h to 310,91l/h, with total oil capacity of 305L. It contains a dry air filter and a 24V electrical system. The inner diameter exhaust pipe is 304mm and it contains guards for all radiator, hot and mobile components.
