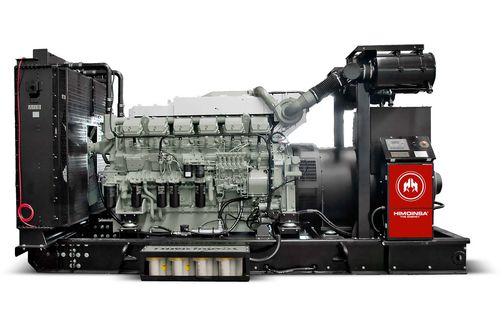

Diesel generator set HTW-1530 T5

three-phase50 Hzdirect fuel injection

Rated Output: 1277 kW prp; 1404 kW standby Manufacturer: MITSUBISHI Model: S12R PTAA2 Engine Type: Diesel 4 strokes-cycle Injection Type: Direct Aspiration Type: Turbocharged and aftercooled Ciylinders Arrangement: 12V Bore and Stroke: 170 x 180 mm Displacement: 49,03 L Cooling System: Water Lube Oil Specifications: API CD or CF SAE 30 or SAE 40 Compression Ratio: 13,5:1 Fuel Consumption StandBy: 341,92 l/h Fuel Consumption 100% PRP: 308,97 l/h Fuel Consumption 75 % PRP: 231,73 l/h Fuel Consumption 50 % PRP: 161,56 l/h Fuel Consumption 25 % PRP: 94,41 l/h Lube Oil Consumption Full Load: 0,8 g/kwh Total oil capacity including tubes, filters 180 L Total Oil Capacity: 368 L Governor Type Electrical Air Filter Type Dry Inner diameter exhaust pipe: 304 mm Standard air filter Standard fuel filter Standard oil filter Oil temperature sensor Low coolant level sensor Exhaust gases compensator Diesel engine 4 strokes-cycle Water-cooled 24V Electrical system Radiator with blowing fan Electronic governor Sender WT Senders OP Hot components and radiator guards Mobile components guards
