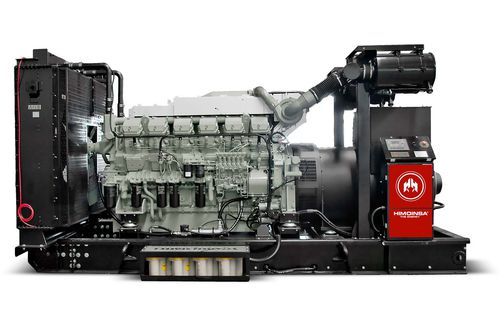

Diesel generator set HTW-1745 T5

three-phase50 Hzdirect fuel injection

The Mitsubishi S16R PTA is a diesel engine with four strokes-cycle that works at 1450 kW prp output,and a 1590 kW standby setup. This uses a direct injection body and a turbocharged and aftercooled unit. This has a 16V arrangement and uses a 170 x 180 mm bore and stroke setting with a 65.37L displacement. This uses a water coolant and can manage SAE 30 or 40 oil needs. This is made with a 14:1 compression ratio. It uses 374.65 liters per hour at a standby setup and a 341.66, 259.68 and 183.44 liters per hour total for 100, 75 and 50% usage. This also works at 107.77 liters per hour for 25% use. This uses a 0.8 g/kwh consumption rate for lube oil needs and works with 368 liters of oil at a time. This is made with a setup that use an electrical governor, a 340 mm inner diameter, a dry air filter and a low coolant level sensor. This uses a 24V electrical system and WT and OP sensors plus body guards.
