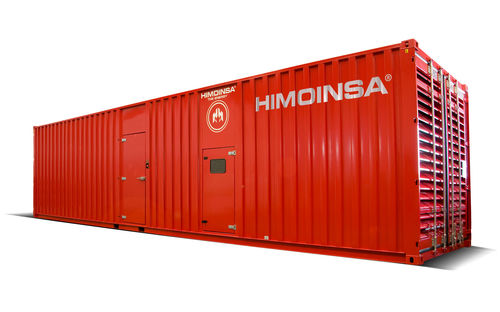

Diesel generator set HTW-1525 T6three-phasecontainerized60 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- containerized
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Cooling system
- water-cooled
- Power in kVA
Min.: 1,726 kVA
(2,346.71 hp)Max.: 1,901 kVA
(2,584.64 hp)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,800 rpm
(11,310 rad.min-1)
Description
This three phase unit with a 60 Hz frequency has a 1447 kW rated output and a 1596 kW output for its standby functions. This uses a 4 strokes-cycle body with a diesel engine that manages a turbocharged setup with a direct injection solution. This is all made with SAE 30 and 40 oil support in mind while using a sensible control that manages a 13.5:1 compression ratio. This works with a 24V electrical system and a water-cooled body while using separate filters for the air, oil and fuel. This has guards around the entire body as well. This large unit is made by Mitsubishi and is available through Himoinsa. It can also operate on its own for about an hour as it is to be managed.
