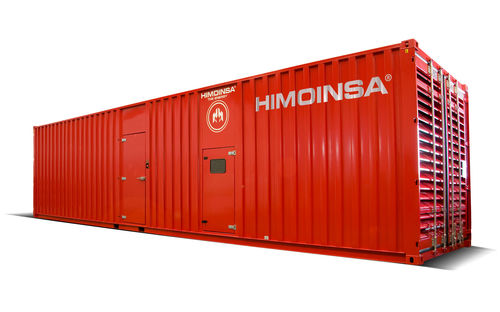

Diesel generator set HMW-1730 T6

three-phasecontainerized60 Hz

Made by Himoinsa, this MTU model 12V4000G83 has an output that rates 1686 kW prp and 1860 kW when on standby. It is a turbocharged 4 stroke diesel type. The engine is after cooled, and is a direct aspiration type. It has 12V cylinder arrangements, and the stroke and bore measures 170 x 210 mm. with an engine that will displace about 57.2 liters. The device's cooling system requires the use of coolant fluid, and the engine uses S10 W40 lube oil. The compression ratio in this machine measures 16.5, and standby fuel consumption measures 457.51 liters per hour. At 100% fuel consumption, PRP measures approximately 405.74 liters per hour. At 75% fuel consumption, PRP measures approximately 301.28 liters per hour, and at 50% fuel consumption, PRP measures approximately 213.97 liters per hour. At 25% fuel consumption, PRP measures approximately 123.64 liters per hour. 1% of lube oil consumption is used during a full load, and the total oil capacity of this engine is 260 liters without counting the filters or tubes. When the filters and tubes are counted it holds 580 liters. The inner portions of the exhaust pipe measure approximately 251 mm. in diameter, this 24V electrical system additionally features a water cooled radiator.
