Diesel generator set HYW-14 M6
three-phasestationary50 Hz

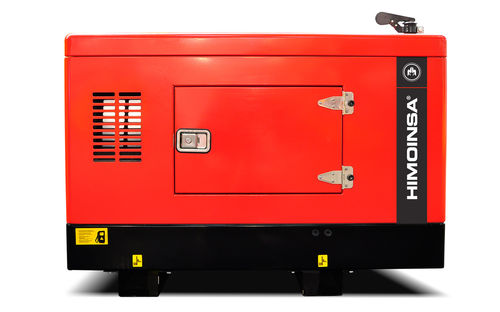

Diesel generator set - HYW-14 M6 - HIMOINSA - three-phase / stationary / 50 Hz
Diesel generator set - HYW-14 M6 - HIMOINSA - three-phase / stationary / 50 Hz
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Options and accessories
soundproof
Power in kVA

12.1 kVA, 13.3 kVA
(16.45 hp, 18.08 hp)

Description

This YANMAR diesel engine runs on a 4 strokes-cycle with a direct injection type. Model 3TNV88 BGGEH has a natural aspiration, 3-L cylinders and a rated output of 14,7 kW prp or 16,2 kW on standby. It works on a coolant system with a displacement of 1,642 L. The bore and stroke sizes are 88 x 90 mm. The engine uses lube oil SAE 3 class 10W30 / API grade CD, CF. The total oil capacity is 6,7 L. The fuel consumption at 50%, 75% and 100% PRP is 2,25 l/h, 3,06 l/h and 4,02 l/h respectively. It is 4,52 l/h on standby. The water cooled diesel engine has a 12V electrical system, a mechanical governor, a dry air cleaner, a water separating decanting filter, hot components and radiator guards, and mobile components guards.
