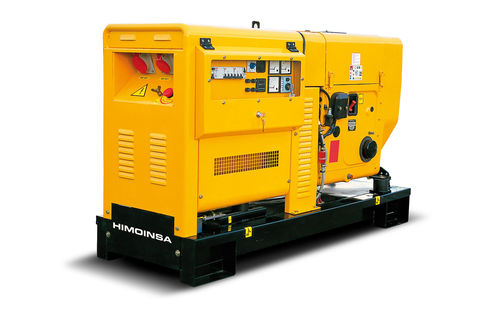

Diesel generator set HZA1-20C M5three-phase50 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Options and accessories
- with cover, soundproofed
- Power in kVA
Max.: 20 kVA
(27.19 hp)Min.: 19.2 kVA
(26.1 hp)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
This HATZ diesel engine runs on a 4 strokes-cycle with a direct injection type. Model 3L 41C has a natural aspiration, 3-L cylinders and a rated output of 20,6 kW prp or 22,9 kW on standy. It works on an air cooling system with a displacement of 2,574 L. The bore and stroke sizes are 102 x 105 mm. The engine uses lube oil CCMC-D4-D5-PD2/API CD-CE-CF-CG/SHPD.
The total oil capacity is 7,8 L and the lube oil consumption is 0,2% of the fuel consumption for a full load. The air cooled diesel engine has a 12V electrical system, a mechanical governor, a dry air cleaner, hot components and radiator guards, and mobile components guards.
