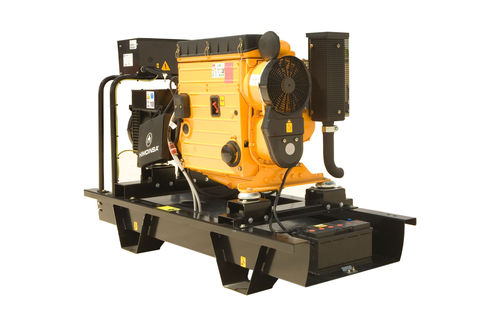

Diesel generator set HZA1-30 M6single-phase60 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- single-phase
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Power in kVA
Max.: 32 kVA
(43.51 hp)Min.: 30 kVA
(40.79 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
This HATZ diesel engine runs on a 4 strokes-cycle with a direct injection type. Model 3M 41 has a natural aspiration, 3-L cylinders and a rated output of 28 kW prp or 31,1 kW on standy. It works on an air cooling system with a displacement of 2,574 L. The bore and stroke sizes are 102 x 105 mm. The engine uses lube oil CCMC-D4-D5-PD2/API CD-CE-CF-CG/SHPD.
The total oil capacity is 8,5 L and the lube oil consumption is 0.2% of fuel consumption for a full load. The air cooled diesel engine has a 12V electrical system, a mechanical governor, a dry air cleaner, hot components and radiator guards, and mobile components guards.
