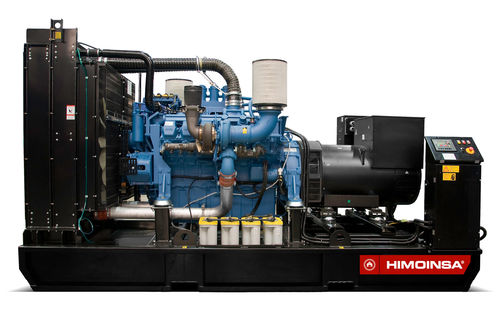

Diesel generator set HMW-310 T6

three-phase60 Hzdirect fuel injection

Made by MTU, this device is a model 6R1600G20S. It has an output that has been rated around 299 kW. This particular model features an injection type, turbocharged diesel with a four-stroke cycle. The engine is also after-cooled. It features six L Bores and a stroke of around 122 x 150 mm. This device displaces about 10.5 L. Coolant is used by the cooling system on this device and it uses S10 W40 lube oil. The compression rating measures approximately 17.5 and the fuel standby consumption is at 89.96 liters per hour. All of the fuel placed in this device will have a PRP rate of 75.46 liters per hour. When the fuel consumption is set to 75%, it will have PRP rate of 58.77 liters per hour. At 50% fuel consumption, the PRP will measure 44.99 liters per hour. 25% consumption will result in a PRP of 24.31. A full load of lube oil will require 0.5% of fuel consumption. The total oil capacity of this model is set at 46 liters when the tubes and filters are not counted. Counting them the total oil capacity will be around 84 liters. The exhaust pipe on this device is of a Governor Electrical type.
