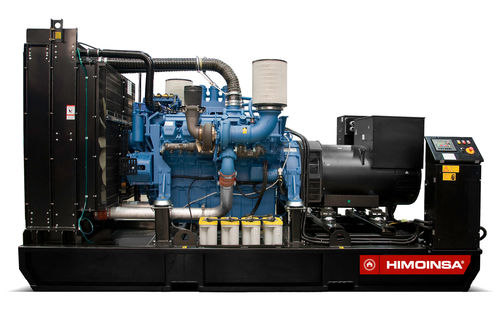

Diesel generator set HMW-370 T6

three-phase60 Hzdirect fuel injection

The Model 8V1600G10S by MTU produces a rated output of 354.3 kW PRP and 391.3 kW during standby. It is a diesel 4-strokes direct injection model with turbocharged and aftercooled aspiration. It has 8V cylinder arrangement with a bore and stroke of 122 x 150 mm. It displaces 14 L and has a coolant system. Lube oil is to S10 W40 specification with a 17:5 compression ratio. Fuel consumption on standby is 97.73 (l/h), on 100% PRP is 91.89; 77 on 75% PRP, 54.14 on 50%, and 29,87 on 25%. Lube oil consumption is 0.5% fuel consumption on full load. The total oil capacity is 46 L, including tubes and filters or 84 L TOC. It has an electrical governor and a dry electrical air filter. The diameter of its inner exhaust pipe is 106 mm dry. It has a radiator with blowing fan and a decanting filter (visible level) for water separation.
