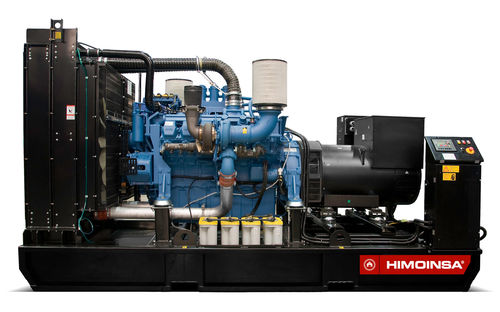

Diesel generator set HMW-510 T6

three-phase60 Hzdirect fuel injection

Himoinsa HMW-510 T6 480V diesel generator (KVA 580/P.R.P 637 Standby, kW: 464/P.R.P 510 Standby) has a frequency of 60 Hz and three phase system. The 1.800 rpm MTU (Model: 10V1600G20S) engine has a rated output of 493 kW prp/543 kW standby. The diesel 4 strokes-cycle engine has direct injection and turbocharged and aftercooled aspiration with 10V cylinders arrangement and bore and stroke of 122 x 150 mm. The generator has a length of 3.600 mm, height of 2.121 mm, width of 1.604 mm and wet weight of 3.872 Kg. The generator has a 740L fuel tank and fuel Consumption is StandBy: 123,94 l/h; 100% PRP: 114,08 l/h, 75 % PRP: 90,02 l/h, 50 % PRP: 66,85 l/h and 25 % PRP: 36,39 l/h.
