Diesel generator set HMW-555 T6
three-phase60 Hzdirect fuel injection

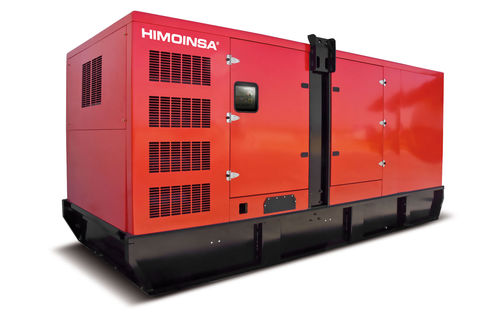

Diesel generator set - HMW-555 T6 - HIMOINSA - three-phase / 60 Hz / direct fuel injection
Diesel generator set - HMW-555 T6 - HIMOINSA - three-phase / 60 Hz / direct fuel injection
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Frequency
60 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Options and accessories
soundproofed
Power in kVA

Max.: 694 kVA
(943.58 hp)

Min.: 635 kVA
(863.36 hp)

Rotational speed

Max.: 1,800 rpm
(11,310 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

Rated output 536,6 kW prp and 588,6 kW standby. MTU Model 12V1600G10S has a diesel 4 strokes-cycle engine with a direct aspiration injection. Engine is turbocharged and aftercooled Ciinders arrangementis 12V bore and stroke 122 x 150 mm Features a 21 L cooling system and uses S10 W40 lube oil. Compression Ratio is 17,5 and fuel consumption standby 139 l/h, fuel consumption 100% PRP: 131,12 l/h, fuel consumption 75 % PRP: 100,78 l/h, fuel consumption 50 % PRP: 69,8 l/h, and fuel consumption 25 % PRP: 41,75 l/h. Designed with a lube oil consumption full load: 0,5 % of fuel consumption. Built with a 140 L governor type electrical air filter. 106 mm diesel engine with 4 strokes-cycle, 24V Eeectrical system, radiator with blowing fan and a water separator decanting filter.
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
