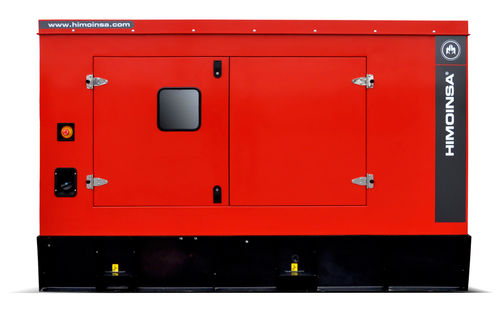

Diesel generator set HHW-60 M5

three-phase60 Hzdirect fuel injection

This 4-stroke diesel engine has a rated output of 54,5 kW PRP with a 60,2 KW standby. The injection type is direct and the aspiration type is turbocharged. The engine from Himoinsa has three rates of fuel consumption (12.6 l/h, 9 l/h, 6.9 l/h). The bore and stroke is 104 x 118 mm with displacement of 4,01 L. The cooling system liquid is glycol and water. The compression ratio is 17,9:1. The air filter is dry, the electrical system runs on 12V and exhaust pipe diameter is 80 mm. It also features a radiator with blowing fan, a water separator decanting filter with no visible level and contains guards for all mobile and hot components.
