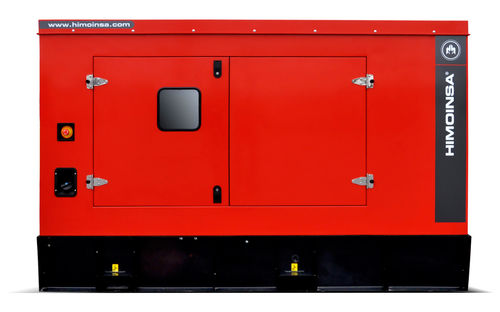

Diesel generator set HHW-130 T5

three-phase50 Hzdirect fuel injection

Rated Output: 110 kW prp; 121,4 kW standby Manufacturer: HIMOINSA Model: HMA6TAG1 Engine Type: Diesel 4 strokes-cycle Injection Type: Direct Aspiration Type: Turbocharged and aftercooled Ciylinders Arrangement: 6 - L Bore and Stroke: 104 x 113 mm Displacement: 5,76 L Cooling System: Liquid (water + 50% glycol) Lube Oil Specifications: API CF4, SAE 15W40 Compression Ratio: 17,5:1 Fuel Consumption StandBy: 31,5 l/h Fuel Consumption 100% PRP: 27,3 l/h Fuel Consumption 75 % PRP: 20,5 l/h Fuel Consumption 50 % PRP: 14,1 l/h Lube Oil Consumption Full Load: 0,15 % of fuel consumption Total oil capacity including tubes, filters 14 L Total Oil Capacity: 30 L Governor Type Electrical Air Filter Type Dry Inner diameter exhaust pipe: 80 mm Diesel engine 4 strokes-cycle Water-cooled 12V Electrical system Radiator with blowing fan water separator decanting filter (no visible level) Electronic governor Dry air cleaner Hot components and radiator guards Mobile components guards
