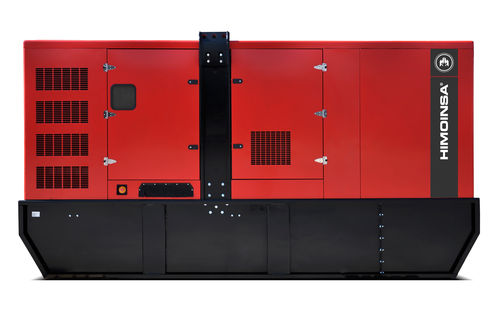

Diesel generator set HRMW-665 T5

three-phase60 Hzdirect fuel injection

The Himoinsa 12V1600B40S is a diesel generator that has a rated output of 558 kW with 616 kW standby. It is a 4-stroke, direct injection, aftercooled and turbocharged model with a coolant, and 12V cylinders. The bore and stroke are 22 x 150mm. Displacement is 21L. The lube oil used is S10 W40. Compression ratio is at 17.5. Fuel consumption on standby is at 141.54 l/h, 100% PRP is at 128,6 l/h, 75% PRP is at 98,96 l/h, 50% PRP is at 68,99 l/h and 25% PRP is at 37,34 l/h. Lube consumption with full load is at 0.5% of fuel used, with 140 L total oil capacity. It is equipped with an electrical governor, dry air filter, dual frequency engine at 50/60 Hz, 24V electrical system and a radiator with blowing fan, among other features.
