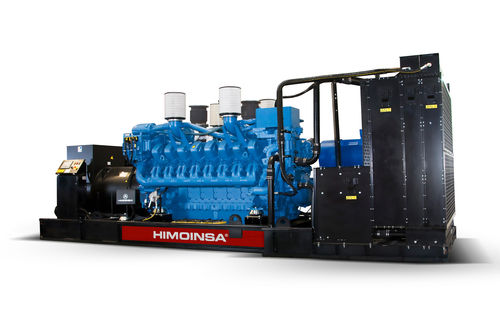

Diesel generator set HMW-2825 T5

three-phase50 Hzdirect fuel injection

Engine Specifications 1.500 Rated Output: 2346 prp ; 2588 standby Manufacturer: MTU Model: 20V4000G63 Engine Type: Diesel 4 strokes-cycle Injection Type: Direct Aspiration Type: Turbocharged and aftercooled Ciylinders Arrangement: 20V Bore and Stroke: 170 x 210 Displacement: 95,4 Cooling System: Water Lube Oil Specifications: S10 W40 Compression Ratio: 16,5 Fuel Consumption StandBy: 594,31 Fuel Consumption 100% PRP: 543,09 Fuel Consumption 75 % PRP: 419,98 Fuel Consumption 50 % PRP: 295,47 Fuel Consumption 25 % PRP: 166,02 Lube Oil Consumption Full Load: 1 % of fuel consumption Total oil capacity including tubes, filters 390 Total Coolant Capacity: 810 Governor Type Electrical Air Filter Type Dry Standard air filter Standard fuel filter Standard oil filter Electronic management (ADEC) Low coolant level sensor Exhaust gases compensator Diesel engine 4 strokes-cycle Water-cooled 24V Electrical system Radiator with blowing fan Sender WT Senders OP Hot components guards Mobile components guards Generator Poles: 4 Winding Conections (standard): Star Frame Mounting: S-0 21" Insulation: H class Enclosure (according IEC-34-5): IP23 Exciter System: self-excited, brushless Voltage Regulator: A.V.R. (Electronic) Bearing: Double drive-shaft Coupling: Flexible disc Coating type: Standar (Vacuum impregnation)
