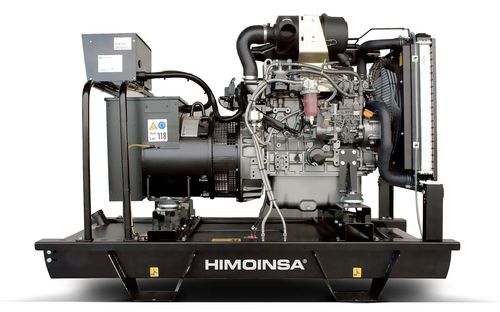

Diesel generator set HYW-9 M5

single-phase50 Hzmechanical fuel injection

Engine Specifications 1.500 Rated Output: 8,2 prp ; 9 standby Manufacturer: YANMAR Model: 3TNV76 GGEH Engine Type: Diesel 4 strokes-cycle Injection Type: inderect Aspiration Type: Natural Ciylinders Arrangement: 3 - L Bore and Stroke: 76 x 82 Displacement: 1,116 Cooling System: coolant Lube Oil Specifications: SAE 3 class 10W30 / API grade CD,CF Compression Ratio: 23,5 Fuel Consumption StandBy: 2,53 Fuel Consumption 100% PRP: 2,31 Fuel Consumption 75 % PRP: 1,77 Fuel Consumption 50 % PRP: 1,40 Lube Oil Consumption Full Load: 0,27 Total Oil Capacity: 3,5 Total Coolant Capacity: 3,7 Governor Type Mechanical Air Filter Type Dry Inner diameter exhaust pipe: 40 Diesel engine 4 strokes-cycle Water-cooled 12V Electrical system Radiator with blowing fan Water separator decanting filter (visible level) Mechanical governor Dry air cleaner Hot components guards Mobile components guards Generator Poles: 4 Winding Conections (standard): Double delta Frame Mounting: S-5 7"1/2 Insulation: H class Enclosure (according IEC-34-5): IP23 Exciter System: self-excited, brushless Voltage Regulator: A.V.R. (Electronic) Bearing: Single bearing Coupling: Flexible disc Coating type: Standar (Vacuum impregnation)
