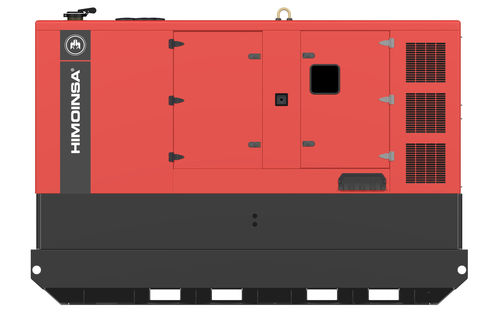

Diesel generator set HRSW-255 T5

three-phase50 Hzdirect fuel injection

Engine Specifications 1.500 Rated Output: 220 prp Manufacturer: SCANIA Model: DC9 71A (02-01) Engine Type: Diesel 4 strokes-cycle Injection Type: Direct Aspiration Type: Turbocharged and aftercooled Ciylinders Arrangement: 5-L Bore and Stroke: 130 x 140 Displacement: 9,3 Cooling System: coolant Lube Oil Specifications: ACEA E3,E4,E5 or E7 Compression Ratio: 16:1 Fuel Consumption 100% PRP: 55,45 Fuel Consumption 75 % PRP: 42,57 Fuel Consumption 50 % PRP: 28,78 Lube Oil Consumption Full Load: 0,2 Total Oil Capacity: 38 Governor Type Electrical Air Filter Type Dry Inner diameter exhaust pipe: 90 Diesel engine 4 strokes-cycle Water-cooled 24V Electrical system Radiator with blowing fan Water separator decanting filter (visible level) Electronic governor Sender WT Senders OP Low water level sensor Dry air cleaner Hot components guards Mobile components guards Generator Poles: 4 Winding Conections (standard): Star-serie Frame Mounting: S-1 14" Insulation: H class Enclosure (according IEC-34-5): IP23 Exciter System: self-excited, brushless Voltage Regulator: A.V.R. (Electronic) Bearing: Single bearing Coupling: Flexible disc Coating type: Standar (Vacuum impregnation)
