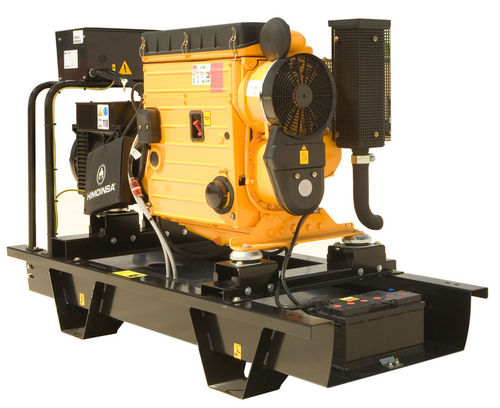

Diesel generator set HZA1-35 T5three-phase50 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- water-cooled
- Power in kVA
Max.: 35 kVA
(47.59 hp)Min.: 32 kVA
(43.51 hp)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
The HATZ-4M 41 diesel engine has 4 stroke cycle with an air-cooled 12V electrical system. The radiator has its blowing fan and with no visible level of water separator decanting filter. It has a mechanical governor and dry air cleaner. There are hot components, radiator guards and mobile components guards. It has an air cooling system and dry air filter type. Aspiration type is natural and direct injection type. Its inner diameter exhaust pipe is 40mm, 0,2% of fuel consumption on Lube oil. The total oil capacity is 14L, fuel consumption standby is 8,5 l/h. Its cylinder arrangement is 4-L, displacement of 3,432L.
