Diesel generator set HTW-775 T6
three-phasecontainerized60 Hz

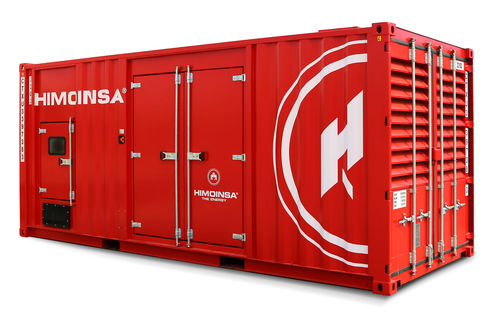

Diesel generator set - HTW-775 T6 - HIMOINSA - three-phase / containerized / 60 Hz
Diesel generator set - HTW-775 T6 - HIMOINSA - three-phase / containerized / 60 Hz
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized
Frequency
60 Hz
Fuel System
direct fuel injection
Cooling system
water-cooled
Power in kVA

Min.: 864 kVA
(1,174.71 hp)

Max.: 967 kVA
(1,314.75 hp)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 1,800 rpm
(11,310 rad.min-1)

Description

This Mitsubishi model is made with a four stroke-cycle diesel engine that works with a turbocharged and aftercooled body. This uses a 12V arrangement and a 33.93L displacement while using water as a cooling material. This has a good fuel usage body that uses 215 litres per hour when it works at its highest energy rate. This also uses a strong exhaust pipe that has an inner diameter at around 212 mm in size. This has fuel and air filters and even works with a water-cooled electrical system. The 24V system is made to keep the unit ready while a 300 litre capacity is used for the fuel tank to make it work for a while. It also has an autonomy unit that works for about two hours on average to make it sturdy and capable of working as needed.
