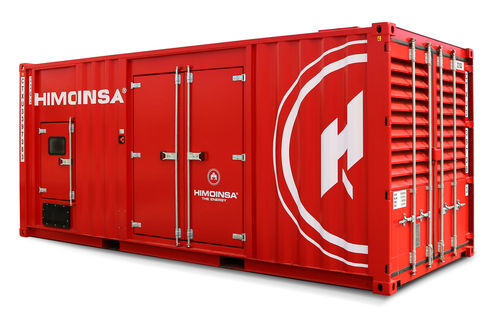

Diesel generator set HTW-870 T6

three-phasecontainerized60 Hz

The MITSUBISHI Model S12A2 PTA2 generator offers high output at economical cost with high power engines. The system offers 834 kW prp rated output at 920 kW standby power. The unit features 4 strokes-cycle direct injection diesel engine, turbocharged and aftercooled cylinders of 12 V, 150 x 160 mm bore and stroke produces 33.93 L displacement. Water-cooled, it uses API CD or CF SAE 30 or SAE 40 lube oil. The unit offers 15.3:1 compression ratio, consumes 246 l/h fuel in standby and 222 l/h fuel at 100% at PRP, 168 l/h fuel at 75 % PRP. At full load it uses 0.8 g/kwh lube oil, with total oil capacity of 120 L. It has an electrical governor, dry air filter, 212mm exhaust pipe (inner diameter) and comes with filters for standard air, fuel and oil, sensors for oil temperature and low coolant level, as well as an exhaust gases compensator, 24V electrical system and radiator with blowing fan.
