Diesel generator set HMW-1010 T5three-phase50 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Power in kVA
Min.: 1,006 kVA
(1,367.78 hp)Max.: 1,108 kVA
(1,506.46 hp)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,500 rpm
(9,425 rad.min-1)
Description

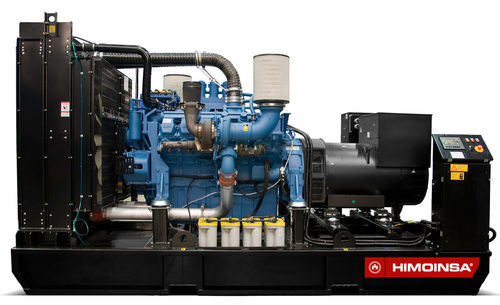

The generator set model HMW-1010 T5 manufactured by MTU is an efficient, three-phase, high-power generator that produces electricity from mechanical energy source. A 4-stroke cycle diesel engine with a compression ratio of 16:1 delivers a PRP rated output of 846 KW and a standby output of 935KW.
It is equipped with self-excited and self-regulated alternator with IP23 protection degree and H-class insulation, single bearing and flexible disc coupling. The fuel tank has a maximum capacity of 195 liters. A control and power electric panel, with measurements devices and controller is provided. In addition, the battery charger and 4-pole circuit breaker is provided.
