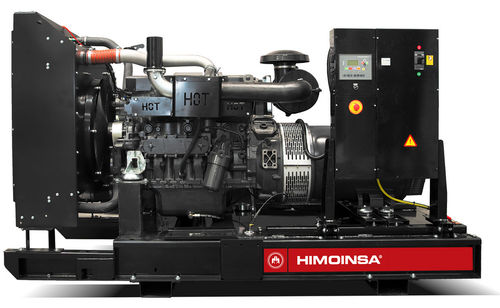

Diesel generator set HFW-75 T5

three-phase50 Hzdirect fuel injection

This is a diesel engine by FPT_IVECO, that features a rated output of 66.1kW prp and 72.7kW as standby. It has a four-strokes cycle, with direct aspiration as the injection type, and features turbocharged cylinders in the arrangement of 4-L bore and stroke in 104 x 132mm. The displacement is 4.5L, with a cooling system of liquid, water and 50% glycol, with lube oil specifications of ACEA E3-E5. It has a compression ratio of 17.5 with one fuel consumption standby, 19l/h fuel consumption of 100%. The PRP is 17.1l/h and the fuel consumption is 80%. The lube and oil consumption with a full load of 0.5% of fuel consumption reaching a total oil capacity including tubes, filters, 12.8L total oil capacity of 18.5L governor type mechanical air filter type dry. The inner diameter exhaust pipe at 70.3mm diesel engine four-stroke cycle, water-cooled 12V electrical system, radiator with blowing fan water separator decanting filter (no visible level), mechanical governor, dry air cleaner, with hot components and radiator guards.
