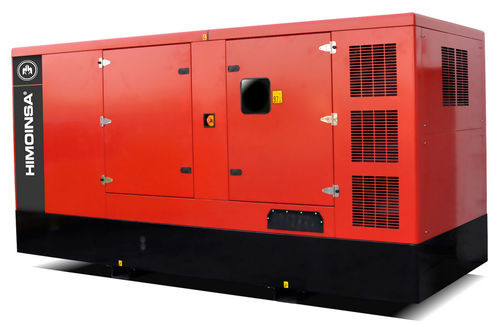

Diesel generator set HSW-365 T6three-phase60 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Options and accessories
- soundproofed
- Power in kVA
Max.: 462 kVA
(628.14 hp)Min.: 424 kVA
(576.48 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
The Scania engine of the DC13 72A (02-11) model has a rated output of 363kW PRP, with 296KW standby. It is a diesel engine, 4 stroke-cycle, with direct injection and is turbocharged and aftercooled with a 6-L cylinder arrangement. Bore and stroke is 130 x 160mm, with the displacement of 12,7L. Compression ratio is 16,3:1 with consumption ranging from 41,96 l/h up to 90,17 l/h, and a total oil capacity of 38L.
It contains a dry air filter and a 24V electrical system. The inner diameter exhaust pipe is 90mm. It also contains guards for all radiator, hot and mobile components.
