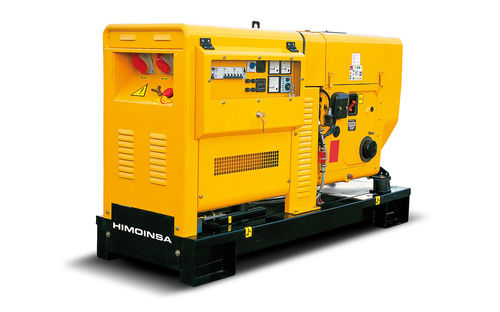

Diesel generator set HZA1-25 T5three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Options and accessories
- soundproofed, with cover
- Power in kVA
Max.: 25 kVA
(33.99 hp)Min.: 23 kVA
(31.27 hp)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
This 3L 41 C model was produced by HATZ with a 4 stroke cycle diesel motor with a direct injection type. It's a natural aspiration type that can hold up to 7,8 L of of fuel and can consume up to 6,2 l/h of fuel. It has a 3-L cylinder arrangement with a medium duty and dry type of air cleaner. It is air cooled with an electrical set up of 12 V. It has a 2,574 L displacement and can consume up to 0,2% of fuel with a compression ratio of 18,7 and 102 x 105mm bore and stroke.
