Hyperspectral camera 4200C

for productionfor UAVsdigital

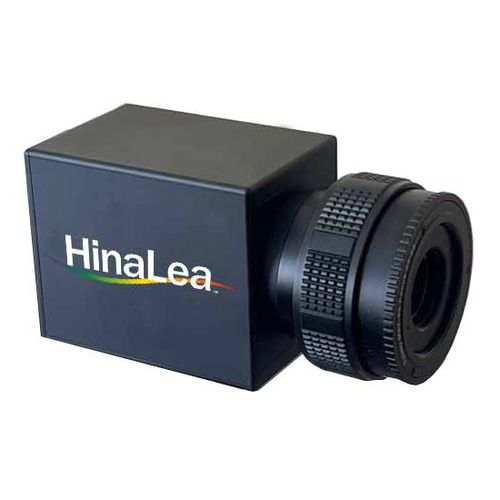

HinaLea’s 4200C MiniVIS hyperspectral imaging sensor covers the 400-1000 nm spectral range in a small-formfactor, highly portable, lightweight package. Based on front-staring Fabry Perot technology, 4200C includes hardware and software required to support a broad range of hyperspectral imaging applications. Key specifications include 300 spectral bands at a spectral resolution of 4 nm (FWHM). The 4200C captures a complete high-spatial-resolution image data-cube across the visible to near infrared spectral range in seconds, but can also be programmed to scan a subset of bands. The ability to dynamically control the sensor based on the application and object to be imaged optimizes data-capture and data-processing efficiency . Thanks to its design, the HinaLea 4200C offers high spectral and spatial resolution without the image uniformity challenges of line-scanning and patterned filter snapshot multi-spectral imagers present. In addition, HinaLea has developed this new sensor to be small, lightweight, and affordable for straightforward deployment in a lab setting, in a production environment, or in the field. Powerful Software The 4200C VNIR system includes proprietary application software featuring fast and easy hyper-cube capture and intuitive image classification/segmentation as part of a suite of powerful spectral image exploration tools.
