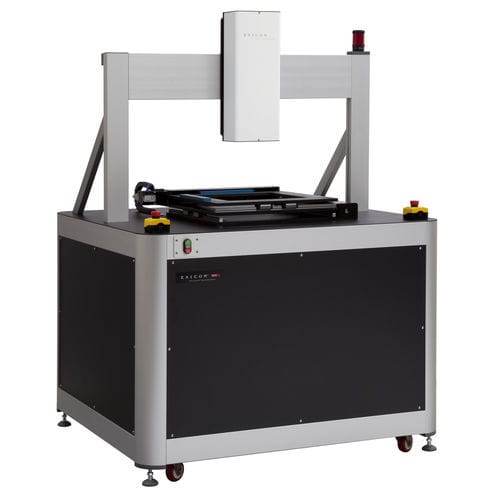

Birefringence measurement system Exicor® 300 AT

flatness

The Exicor 300AT is an all new frame design supporting applications requiring heavier or quantity sample measurements. This entry level high capacity system of the Exicor® birefringence measurement system family brings efficiency, improved load and robustness to the forefront for both the lab and production environment. This model is well suited for larger and heavier samples (up to 300mm X 300mm and 250+mm thick) as well as multiple small sample batch-oriented evaluations. The new design has a heavy duty stage for supporting heavier samples and maintaining stage flatness better than was possible with the previous similarly sized Exicor systems. By adding the optional Exicor Zones™ software to the 300AT the system can be setup to execute automated routines to scan each part individually and assign individual file names to each ‘zone’. This software allows the user to begin the routine and let it run for multiple shifts, overnight or even longer (depending on the application) without having to intervene. With two measurement range options available to choose from (High Sensitivity and Extended Range) the system is well-suited to address the demanding requirements of your large samples. The optional high speed scanning package makes high spatial resolution scans Features: Heavy duty automated XY stage 2D and 3D graphical representation of birefringence parameters 3 side easy access stage loading design Large and flexible stage platform design for adding custom parts holders or process aids Advanced data analysis features included standard in user interface
