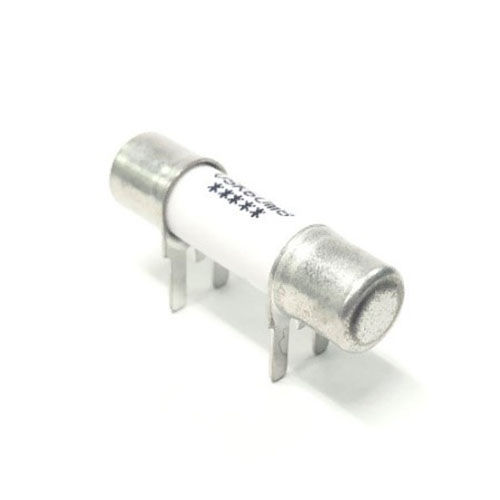

Miniature fuse 400VSK

cylindrical

Features •"400VSK" supports to design which for miniaturization of mount boards for Servo. Power conditioner, and Inverter. •This fuse achieves a rated current 60A with a cylinder size “q)6.6X25mm" •Realization 1/3 of the volume and weight of conventional products. and contribution for weight réduction of mounted products. (*) •Available to use both AC and DC * Compared to our products Rated •Rated Voltage/Blocking capacity AC400V-10kA / DC400V-10kA (L/R=1ms) •Minimum blocking current:DC300V:360A(6-times the rated current), L/R=1ms DC400V: 1 kA( 16-times the rated current), L/R=1ms
