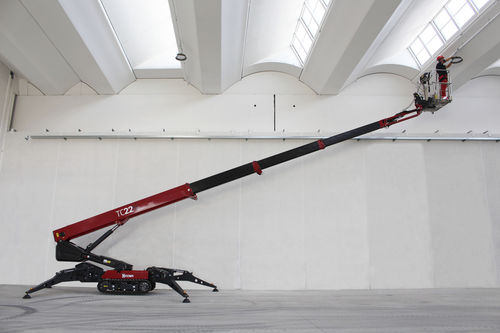

Crawler telescopic boom lift TeleCrawler22S

self-propelleddiesel-electric hybridbattery-powered

Hinowa presents the new telescopic platform TeleCrawler22S, the “full capacity” version with unrestricted working range, an efficient, safe machine equipped with the most advanced technology available on the market. It is available in three different power units: a revolutionary full-electric system, bi-energy technology combining heat and electric motors, and the Kubota Z602 diesel engine combined with the 220V electric motor. The TeleCrawler22S comes with innovative features highlighting the unique nature of this new type of machine, making it an industry benchmark for telescopic platforms: - It has a working height of 22 m and horizontal outreach of 12.4 m. A single unrestricted capacity of 230 Kg for the entire working range, able to support 2 people weighing 80 kg + 70 kg of equipment. - Variable stabilisation area to position the machine even in the most difficult conditions: the complete area is 408 x 427 cm, the reduced area is 240 x 573 cm and the partial stabilisation area is 325 x 427 cm. - Tracked undercarriage with widening system (88-130 cm). - Automatic telescopic boom extension control during lifting/lowering “Go Home” function “Go Back” function - Integrated diagnostics allowing the operator to identify any abnormalities and monitor the main operating parameters of the battery pack directly from the remote control display. Safety at the top of its category thanks to a series of cutting-edge devices: self-stabilisation system, remote control with visual display, optional non-marking tracks (to avoid damaging the surfaces of buildings), front and rear LED work lights and the innovative anti-entrapment device of the new DSE (dual side entry) basket.
