Crawler lift platform Lightlift 40.18

electricdiesel engineexterior

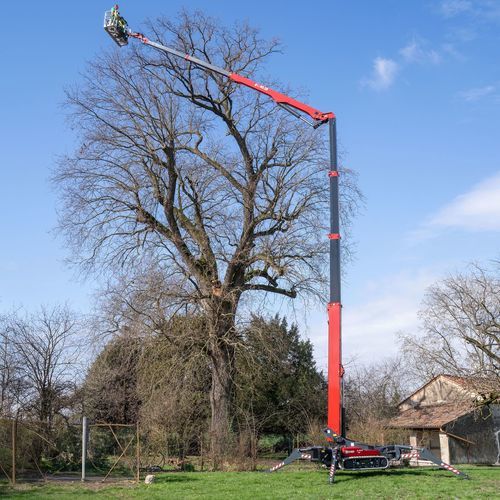

Lightlift 40.18 The new Lightlift 40.18 platform, is the largest model of the Performance IIIS series that Hinowa has built to date is able to reach a working height of 40.2 m in the fully open stabilization area, while in reduced area the height is 35 m with a load capacity of 230 kg, the maximum operating reach is 17.5 m and 10.8 m in reduced area. The Lightlift 40.18, is the first machine in the Performance IIIS range that can accommodate 3 people on the basket plus 60 kg of accessories thanks to the 300 kg load in the basket. Features: •Up&over of 21 meters and articulated column structure formed by 4 sections + 3 sections + jib arm, you can carry out operations with a trajectory flush with the wall • Large and comfortable basket with 300 kg capacity • The transport height is less than 2 meters to allow the platform to easily access the interior of buildings • All multi-steps are rope and not chain and are contained completely inside the arms, to ensure greater protection • Optional remote control for maximum comfort during loading/unloading • The length of the machine closed with the basket removed, is 6.82 meters, while the weight at full load is between 8,700 and 9,000 kg • The machine can lift to a free height under the tracks of 1.12 meters • Function "Go-Home" • Large color remote control display and a SmartVision LCD panel for ground controls • The available engines are: 1. Kubota D902 diesel engine, 3 cylinder, with 16.1 kW electric motor 2. motorization with 19.2 kWh lithium-ion battery pack 3. Bi-Energy
