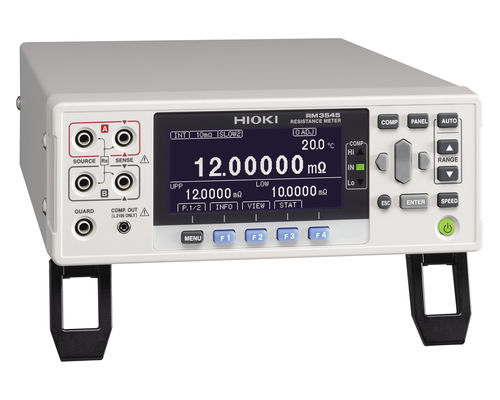

Digital microhmmeter RM3545

bench-topwith integrated temperature compensation

The RM3545 is a resistance meter, with high-accuracy functions, and 20 channel capabilities. The device has 0.006% basic accuracy, a maximum resolution of 0.01 μΩ, and a measurable current of 1A. The meter can measure from 0.00 μΩ to 1,200 MΩ. An optional multiplexer unit Z3003 that gives the channels a complete assessment of multi-point signals. The series consist of a low power resistance measurement. Its open voltage does not exceed in 20 mV. The meter can deliver decisions in 2.2 ms from the beginning to the end.
