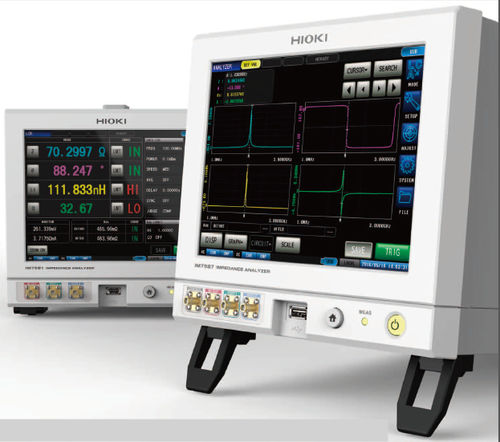

IMPEDANCE ANALYZER IM7587 1MHz to 3GHz Measurement Frequency Impedance Analyzer with 0.5ms Test Speed and 0.07% Variability Overview Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM7587 Impedance Analyzer offers a top measurement time of 0.5ms over a 1MHz to 3GHz frequency range and superior stability, making it ideal for R&D as well as high volume production of ferrite chip beads and chip inductors. Key Features • - 1 MHz to 3 GHz testing source frequency • - Fastest test speed of 0.5 msec (Analog measurement time) • - 0.07% measured value variability (When measuring a 1 nH coil at 3 GHz) • - ±0.65% rdg. basic accuracy • - Half-rack size body and palm-sized test head • - Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment) • - Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode IMPEDANCE ANALYZER IM7580 series：LCR Measurement Using the SMD Test Fixture IM9201 The IM7580 series encompasses five models covering measurement frequencies of 1 MHz to 3 GHz. Used in combination with the Test Fixture IM9201, which can accommodate six SMD sizes, IM7580 series instruments allow you to measure specimens easily and reliably. IMPEDANCE ANALYZER IM7580 series：Comparator function A comparator function lets you check whether measured values fall within a user-defined judgment range. This functionality is ideal for use in generating PASS/FAIL judgments for specimens. IMPEDANCE ANALYZER IM7580 series：Contact check function
