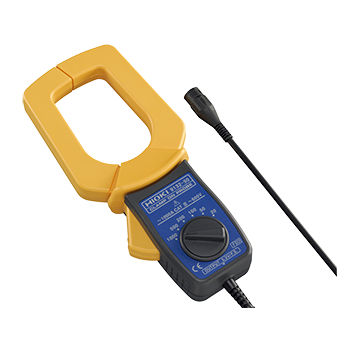

CLAMP ON PROBE 9132-50 Simply Connect to a Tester or Recorder to Easily Measure Large Currents Overview Hioki current sensors are best-in-class devices for accurately capturing a wide range of current levels. The 9132-50 is a multi-range 1000A AC voltage output clamp sensor for capturing waveforms with DMMs and Memory HiCorders. Measure AC current on live power lines without needing to cut the wire. CAT III 600 V Key Features • - Economical clamp sensor for waveform recording with Memory HiCorders • - Choose from up to six general-purpose ranges Basic specifications (Accuracy guaranteed for 1 year) Rated current - 20 A to 1000 A AC, 6 ranges Accuracy - ±3 % rdg. ±0.2 % f.s. (45 to 66 Hz) Frequency characteristics - Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg. Output rate - 0.2 V AC f.s. (f.s. = setting rage) (Connect to a voltage input device providing a high input impedance of 1 MΩ) Max. allowable input - 1000 A rms continuous (all ranges) (For 40 Hz to 500 Hz: 100 %, and for 500 Hz to 1 kHz: within 90 % of derating)
