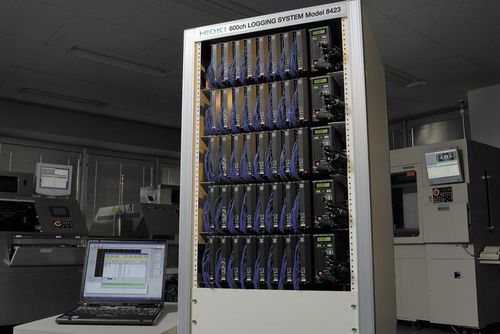

Temperature data logger HiLOGGER 8423

humidityvoltagepulse

MEMORY HiLOGGER 8423 600-channel Data Logger with 10ms Sampling Overview Hioki Memory HiLoggers are high-speed data loggers for recording multiple chanels of voltage, temperature, resistance, humidity, rotation, and pulse signals, providing complete isolation within channel sets. The 8423 with optional input modules log data at 10ms speeds across up to 600 simultaneously, and is configurable and controllable using a PC. Key Features • - Capture data with 15 to a maximum of 600 channels • - Send data to the PC in real time • - Isolated to sustain up to 600 V between modules and earth • - USB 2.0, LAN 100BASE-TX, store to 1GB PC Card • - Simultaneous fast- and low-speed sampling allows for media storage space efficiency Introducing a multichannel logger that can be expanded to accommodate various applications The 8423 can be expanded with up to eight input modules. Four different types of module can be mixed and matched to accommodate specific applications. Adding an input module is easy thanks to one-touch installation. And since the 8423 can be mounted on industry-standard DIN rails, it’s ideal for use in embedded and rack-mounted applications. Introducing a multichannel logger that can measure up to 40 modules (600 channels) A single 8423 can be expanded with up to eight input modules (for a total of 120 channels). Those eight modules constitute one system, and the product can be expanded to include up to five systems (providing the ability to measure 600 channels). What’s more, data can be collected from all 600 channels in as little as 10 msec, making the 8423 ideal for use in measurement applications that involve rapid fluctuations in load, for example hybrid vehicles.
