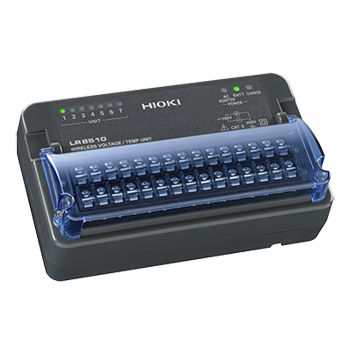

Analog input module LR8510

Bluetoothmulti-channelvoltage

WIRELESS VOLTAGE/TEMP UNIT LR8510 Logging Multi-point Data Has Never Been So Easy with a Wireless Data Logger Overview Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8510 is a wireless, 15-channel voltage and temperature input module that utilizes Bluetooth® wireless technology to send measured data to the Hioki LR8410 Wireless Logging Station. Key Features • - This is a input module to capture logging data using Bluetooth® wireless technology. Install logging modules in hard-to-reach locations (over line-of-sight distances of up to 30 meters *1 ) - (*1) The presence of obstructions may shorten this range • - Choose an input module based on the parameters you wish to measure (15-channel type) • - Easily add up to 7 input modules wirelessly to keep your environment free of tangled wires (for a total of up to 7 modules for the LR8410 main unit, max. 105 channels when using 15-channel modules) • - 100 msec simultaneous sampling across all channels using rapid scanning method Basic specifications Supported model - Model LR8410-20 Control and communications - Between instrument and unit: Bluetooth® 2.1 + EDR, Communications range: 30 m (98.43 ft), Security: SSP Measurement parameters - [No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type) [Voltage] ±10 mV to ±100 V, 1-5 V f.s., max. 500 nV resolution [Temperature: Thermocouples] -200 ˚C to 2000 ˚C (depends on sensor), Thermocouples (K, J, T, or other), max. 0.01 ˚C resolution
