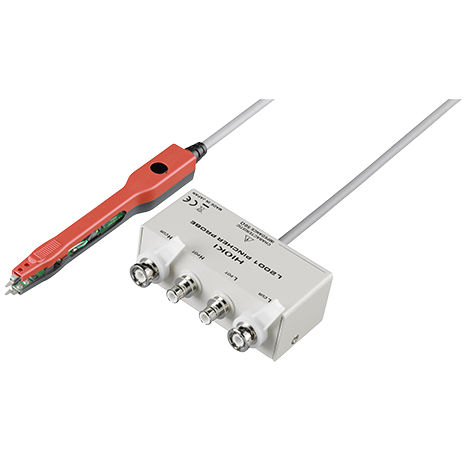

Electric test probe L2001

PINCHER PROBE L2001 Measure 0603 (EIA) Chip Components Overview The L2001 Pincher Probe can be connected directly to measurement terminals on Hioki LCR meters, impedance analyzers, and Capacitance HiTesters. Among the targets it can measure are chip components. Each of the arm tips features a two-terminal design. Key Features • Tip electrodes featuring 2-terminal design (4-terminal pair design between electrode and measurement unit) • Replace the tip easily • Includes 1 set of IM9901 Contact Tips Specifications Overview Connection cable length - 73 cm (2.40 ft) Measurable sample sizes - Contact Tips IM9901 (with standard tips): 1608 to 5750 (JIS)/ 0603 to 2220 (EIA) Contact Tips IM9902 (with optional tips): 0603 to 5750 (JIS)/ 0201 to 2220 (EIA) Characteristic impedance - 50 Ω Usable frequency range - DC to 8 MHz Accessories - Instruction manual ×1, open correction jig ×1, CONTACT TIPS IM9901 (fixed standard with 4 screws)
