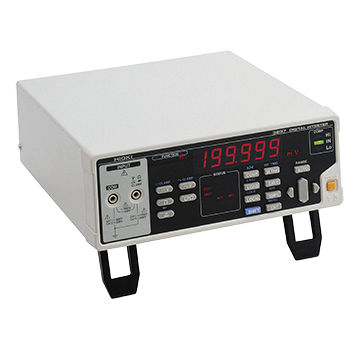

Digital multimeter HiTESTER 3237

benchtop1000 Vcat II

DIGITAL HiTESTER 3237 Low-Cost Digital Multimeter with ±0.025% DCV Accuracy and Basic Measurement Capabilities for General Bench Testing Overview Hioki benchtop digital multimeters are high precision 5-1/2 digit meters that sample 300 times/second. The 3237 Series is the basic economy model, and comes with a comparator function that is especially useful for production lines. CAT II 300 V Key Features • - High-speed 3.3 msec comparator for production line use • - Comparator function with open-collector output, beep sound, or LED display • - Built in RS-232C interface and External control I/O, or added GP-IB interface (-01 model) Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) Basic accuracy is when sampling rate “Slow”Regarding DMM Accuracy : Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information. DC Voltage range - 199.999 mV to 1000.00 V, 5 ranges, Basic accuracy: ±0.025% rdg. ±2 dgt. AC Voltage range - 1999.99 mV to 750.00 V, 4 ranges, Frequency characteristics: 10 Hz to 30 kHz, Basic accuracy: ±0.2% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.) Resistance range (2-terminals) - 199.999 Ω - 100.000 MΩ, 7 ranges, Basic accuracy: ±0.05% rdg. ±2 dgt. Low-power Resistance range (2-terminals) - 1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.05% rdg. ±6 dgt. Continuity test - Beep sound 50.00 Ω or less at 1999.99 Ω range, Testing current 100 μA Diode test - With 1999.99 mV range, Testing current 1 mA
