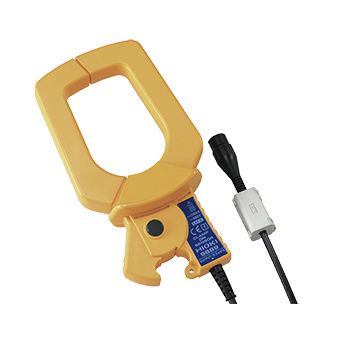

CLAMP ON SENSOR 9669 For measuring load current, voltage output sensor 1000 A AC Overview Hioki current sensors are best-in-class devices for use with power meters and PQAs. The 9669 is a 1000A AC clamp sensor with voltage output for measuring load current. CAT III 600V Key Features • - For inverter devices or commercial power lines • - Measure up to 1000 A Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) Rated measurement current - 1000 A AC Max. measurement current - Continuous 1000 A (45 to 66 Hz) Output rate - 0.5 mV AC/ A Amplitude accuracy (45 to 66 Hz) - ±1.0% rdg. ±0.01% f.s. Phase accuracy - ±1° (45 Hz to 5 kHz) Amplitude frequency characteristics - Within ±2% at 40 Hz - 5 kHz (deviation from accuracy) Max. rated voltage to earth - 600 V AC rms or less Measurable conductor diameter - φ 55 mm (2.17 in) or less 80 × 20 mm, Buss bars Operating temperature and humidity - 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation) Dustproofness and waterproofness - N/A Dimensions and mass - 99.5 mm (3.92 in)W × 188 mm (7.40 in)H × 42 mm (1.65 in)D, 590 g (20.8 oz) Cord length 3 m (9.84 ft), Output terminal: BNC
