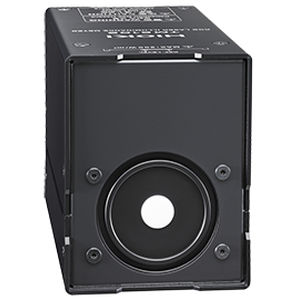

Illuminance meter TM6102

RGB LASER METER TM6102 Definitively Measure the White in Laser Displays - Specially Designed for RGB Lasers Overview The RGB LASER METER TM6102 evaluates the white balance of displays that use lasers by measuring centroid wavelength and optical power, which are key characteristics in the evaluation of laser light sources, using the proprietary Discrete Centroid Wavelength Method, a new technique for directly measuring the centroid wavelength and optical power of laser light sources. Applications include processes designed to adjust and inspect RGB lasers used in automotive head-up displays and head-mounted displays by measuring radiant illumination, centroid wavelength, illuminance, and chromaticity. Key Features • - Proprietary Discrete Centroid Wavelength Method for laser photometry • - Cut adjustment time in half with white balance navigation • - Measure up to 9 points on 12-inch* screen simultaneously - *12 inches: 4:3 250 mm × 180 mm (9.84 in x 7.09 in) • - Modulated light function for displays with a wide color gamut • - Low incidence angle dependence in chromaticity A comment from the Good Design Award 2017 “Hioki invented the Discrete Centroid Wavelength Method for instruments used to measure laser light sources, a technology that promises to boost productivity in the manufacture of displays by speeding up the white balance adjustment process, which has previously required skill and experience. This award recognizes a waste-free, functional design that allows the instrument to be easily aligned with the laser’s optical axis from the side simply by aligning a mark on the enclosure with the beam.”
