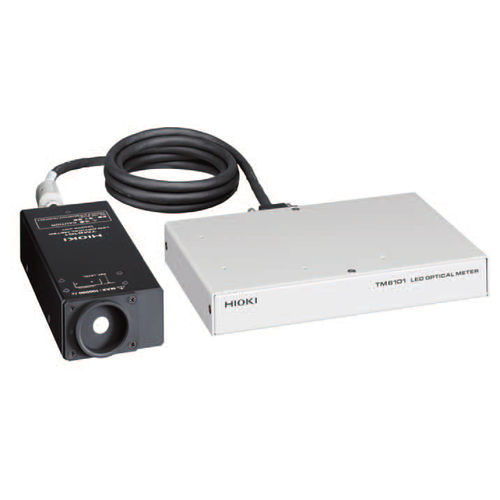

Light meter TM6101

LED OPTICAL METER TM6101 Improve Productivity with Ultra-fast and High-precision Measurement Overview The Hioki TM6101 is an optical characteristic measuring instrument geared for the production lines of white LED and LED lighting devices. Based on Hioki’s proprietary filter spectroscopic measurement method, the LED optical meter measures optical characteristics such as luminous intensity, chromaticity and color rendering index of white LEDs with ultra high accuracy and offers a faster speed of measurement compared to a high-precision spectrometer. Key Features • - Optical characteristic measuring instrument for white LED and LED lighting devices • - High-precision filter system delivers high speed and high precision • - Rapid measurement with approx. 5ms at its fastest • - Stability of chromaticity values is within ± 0.0001 (3) • - Influence caused by angle of incidence is within ± 0.001 for chromaticity values Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) Measurement items - (1) Illuminance, Luminous flux, Luminous Intensity (2) Chromaticity (3) Color Rendering Index (4) Correlated Color Temperature and Δuv (5) Dominant wavelength and excitation purity Measurement range - [Illuminance] 5 lx to 100,000 lx Applicable standard Compliant with special type illuminance measuring instruments* specified in Japanese Industrial Standard (JIS) C 1609-1:2006 Illuminance meters Part 1:General measuring instruments. Performance (1) Illuminance linearity*: 2 % ±1 dgt. (2) Visible range relative special responsivity characteristics*: 1.5 % *Terms translated into English by Hioki
