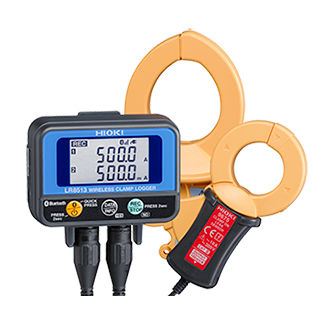

Current data-logger LR8513

wirelesswith LCD displayfor leak detection

WIRELESS CLAMP LOGGER LR8513 Measure Load Current and Leak Current Easily with Clamp Sensors Overview Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8513 is a wireless, 2-channel AC/DC current input module that utilizes Bluetooth® technology to either send measured data to the Hioki LR8410 Wireless Logging Station or to an Android (TM) tablet. Key Features • - Measure AC and DC load current and AC leak current • - Choose from many current sensors • - Place inside a distribution panel, close the cover, and monitor measured values from the outside • - Measure power easily—just set the voltage and power factor • - Compact, two-channel model fits where other devices don’t • - Download measurement data to a tablet or computer with Bluetooth® wireless technology or capture in real time with the LR8410 • - Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply) • - Store 500,000 data points per channel Data can be downloaded using Hioki’s tablet and smartphone app (for Android devices). Search for “HIOKI” and download the Wireless Logger Collector! Precautions concerning use of the CT7731, CT7736, and CT7742 to measure AC/DC load current The AC/DC Auto-zero Current Sensor CT7731/CT7736/CT7742 cannot be connected directly to the Wireless Clamp Logger LR8513. The Display Unit CM7290 and Output Cord L9095 is required to connect those sensors to the LR8513. Precautions concerning use of the CT7044, CT7045, and CT7046 to measure AC/DC load current
