Monitoring software UA1782

visualizationtestelectrical network

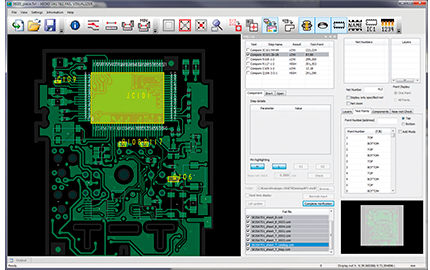

FAIL VISUALIZER UA1782 Robust Support for Repair Work Using Simple Operations and Assistive Functionality Overview The Fail Visualizer UA1782 Series is a dedicated visualization software for Hioki electrical testing equipment and data creation systems. Key Features • - Visualize test results from flying-probe testers • - Pinpoint components and patterns from test result files • - Display the probing positions of test fixtures or test heads for both ICT and bare board testers • - Search for components and nets on device embedded substrates Specifications Overview License content - Install CD, license key (USB), instruction manual *Note: Please purchase hardware such as PC and monitor separately. Database import - Load UA1780 and U-ART databases Supported OS - Windows 10 Pro 64-bit, Windows 7 Professional 64-bit Net highlighting - Display user-specified nets with color highlighting. The user can select whether to display all layers or only top and bottom layers. Fail list loading with real-time monitoring - Monitor a test result output folder for a testing system at a specified interval and automatically load new test data as it becomes available.
